Shear bracket kit
Elevate VansSprinter
€ 295,00€ 356,95 (Incl. VAT) (Ex. VAT)
In stock
Compatible with
- Mercedes Benz - Sprinter W906 (2006 - 2018)
Prevent chassis mount failures with the heavy-duty Shear bracket kit for your Sprinter van—ideal for tough off-road conditions.
Advantages of the Shear Bracket Kit for Your Campervan
A widely faced issue when taking Sprinters off-road is that the rear shock absorber bolts can shear at the chassis mounting due to high stresses. When this happens, extracting the broken bolt from the rail becomes more than just a nuisance—especially if you’re somewhere far from the nearest road.

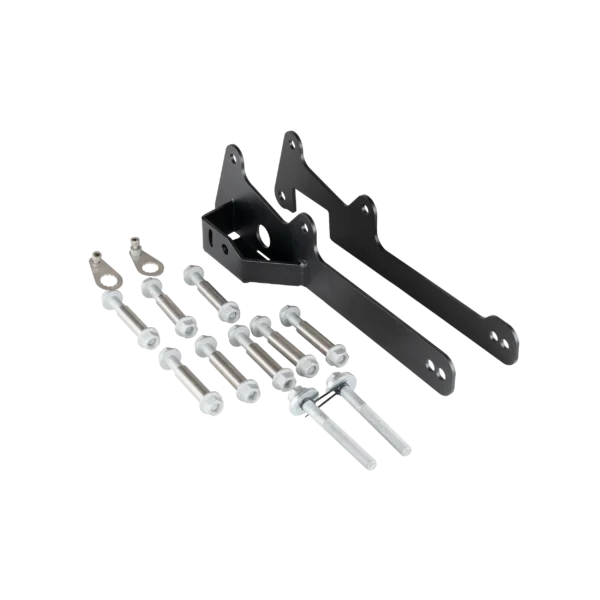

The Shear Bracket Kit is specifically made to counter this problem. The main bracket distributes the load from the shock absorber to two points in the bolt, allowing the forces to be transferred to the chassis by two additional bolts. A backing plate is provided to further reinforce the system, and a lock plate is supplied to lock the bolt in place.
Crafted from durably powder-coated steel, the Shear Bracket Kit helps ensure your journey beyond the winding roads happens without incident, even in the toughest terrain.
Shear Bracket Kit Installation Requirements
The installation of the Shear bracket kit is straightforward and can be done with basic tools, as all components are designed as bolt-on parts. The kit includes all necessary hardware.
Shear Bracket Kit Specifications
- Load distribution: Two-point bolt load distribution
- Reinforcement: Backing plate included
- Locking: Lock plate included to secure the bolt
- Material: Powder-coated steel
Product Disclaimer
The regulations for suspension components are different per country. It is your responsibility to check what your country requires. Elevatevans does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
| Shipping weight | 10 kg |
|---|---|
| Shipping dimensions | 50 × 25 × 25 cm |
| Material | Steel |
| Finish | 2-layer powder coating |
| Requirement | X |
